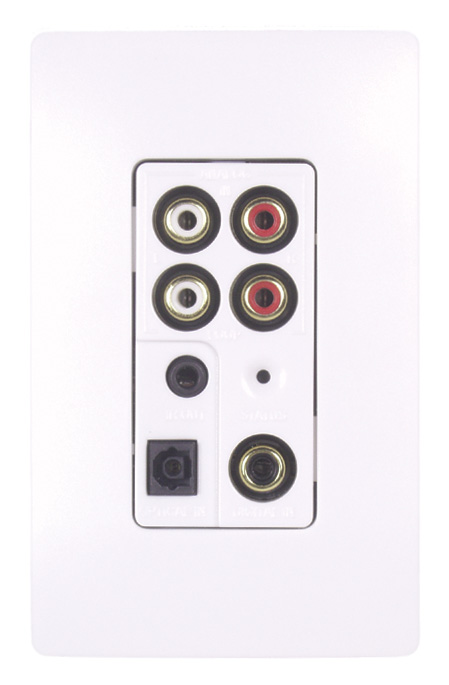

ZON Input Module (ZIM-4)
Inputs Where You Want Them
The ZON Input Module is the next generation of multi-source input technology for whole house audio. The ZIM-4 provides input connections for analog, digital, and optical audio sources and an IR output, all in one convenient single-gang, Decora-sized module.
The ZIM-4 provides unprecedented system design flexibility. Its small size allows designers to discretely locate inputs near sources without having to sacrifice rack space or interior style. Multiple modules can be ganged together where needed to create a multi-source connection point. The ZIM-4 features a 24-bit A/D converter, so source inputs can be located virtually anywhere without compromising signal quality and without the need to run specialty cables.
Ideal for structured wiring plans, two ZIM-4 modules can be looped on a single CAT-5e or CAT-6 cable.
Analog input (RCA) L+R
Analog loop out (RCA) L+R
Digital audio input (Coax)
Optical audio input (TOSLink)
IR output with talkback LED for connection of IR bug
On-board 24-bit A/D converter
No rack space required
No "set top" clutter
Single-gang, Decora-style module
Connects with CAT-5e or CAT-6 wire
Available in a variety of colors
