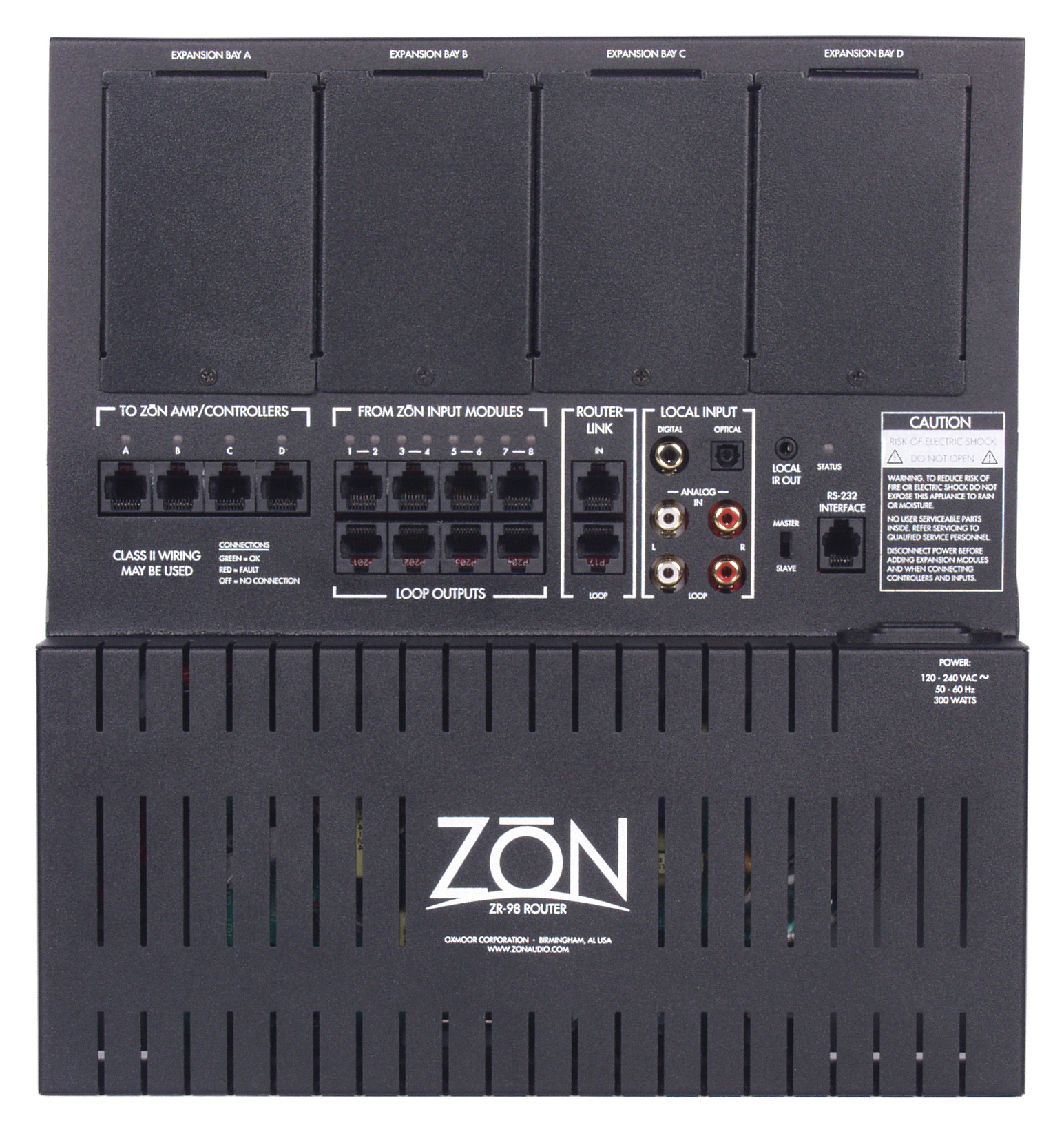

ZON Router (ZR-98)

Advanced, All-Digital Reliability

The ZON ZR-98 Router is the next generation of multi-source, multi-zone control systems for whole house audio. The ZR-98 is a nine source, four zone, four sub-zone control system that provides power, audio, control and communications to and from each remotely located ZON ZAC-60 Audio Controller. It features a 24-bit digital audio path for unsurpassed audio quality and performance.

The ZR-98 is ideal for structured wiring plans. ZON Audio Controllers and ZON Input Modules connect to the ZR-98 via CAT-5e or CAT-6 wire and 8P8C modular jacks. The Router is rack, wall, flange, or structured wiring enclosure mountable.

Multiple ZR-98 units can be linked together for easy and efficient system expansion (expandable to more than 1,000 zones).

A built-in RS-232c port interfaces to home control systems. System setup and firmware updates are applied by connecting the ZR-98 to a PC running Oxmoor's ZON Router Serial Configuration Utility.

Expand functionality and add features to a ZON system with the addition of optional expansion modules. The ZR-98 has four available bays for optional hardware enhancements exclusively for the ZON system.


› Nine independently selectable inputs
› Four zones, expandable to more than 1,000
› Digital quality and reliability
› Dedicated IR input and output
› Wide variety of mounting options available
› Connects with CAT-5e or CAT-6 wire
› Low power consumption
› Optional external paging system and Ethernet/LAN interfaces
